Throw-In Type Heat Exchanger "Titanium Coil for heat exchanger"

Shows Titanium power in severe condition.

Titanium coil of YAMAICHI shows its power in the severe condition.

Titanium coil of YAMAICHI has good characteristics of heat transfer, anti-rust and no-ionizing and shows good capabilities in many industry areas.

YAMAICHI has high level fabricating technologies and produces high quality products.
Standard products of YAMAICHI coil have wide range of variations of specification according to the purpose and using condition.
YAMAICHI coil has reliable short delivery time.

Standard Products

Standard Products

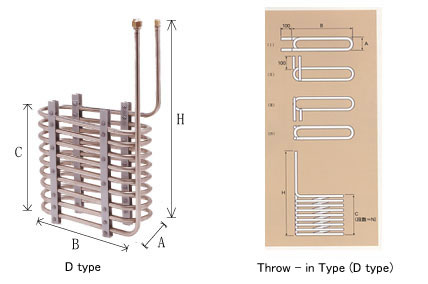

D型、投げ込み式標準型（D型） クリックすると拡大図が別ウィンドウで表示されます。
Specifications for Standard Type of Throw - in Type (D type)
Number Capacity of Refrigerato
r(Kw)		 Thermal Conducting Area(㎡) Specification of Titanium Pipe(Out Diameter x Wall thickness) (mm) A
(mm)		 B
(mm)		 H
(mm)		 C
(mm)		 Numbers of Turns
040 0.4 0.2 Φ16×0.5 100 350 450 120 4
060 0.6 0.3 Φ16×0.5 100 350 450 200 7
075 0.75 0.35 Φ16×0.5 100 400 600 250 7
100 1.1 0.5 Φ16×0.5 100 500 600 300 8
150 1.5 0.7 Φ16×0.5 175 600 700 400 10
Φ19×0.5 165 600 700 400 9
220 2.2 1.0 Φ16×0.5 175 700 800 500 13
Φ19×0.5 165 700 800 500 11
375 3.75 1.6 Φ19×0.5 215 800 900 600 15
Φ25.4×0.5 210 800 900 600 11

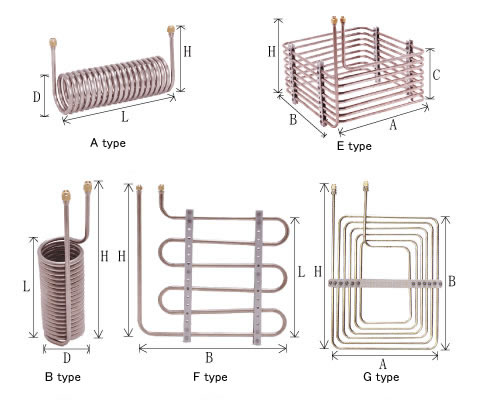

SPECIAL Order Specification

(Please decide and order the sizes in the drawings below, as you like)
